Garage Door Cable Repair

We’ll help get your door back on track.

Lift cables work with the cable drums and counterbalance system to help raise and lower the door. If a cable frays, loosens, or comes off a drum, the door may sit unevenly or stop moving correctly.

Call 704-625-5146

HOW THE CABLE SYSTEM WORKS

A Cable Problem Usually Involves More Than the Cable.

Garage door lift cables connect the door to its counterbalance system. On a typical torsion-spring setup, each cable runs from a bottom fixture to a cable drum, where it must wind evenly as the door moves.

WHY CABLES COME OFF DRUMS

A slipped cable is usually a symptom—not the whole problem.

Loss of tension, uneven door travel, a damaged drum, or related hardware trouble can change the cable path. The cable may cross the drum grooves, go slack, or slip free, leaving the door crooked or wedged in the tracks.

Lift cable: Condition, length, routing, and attachment all affect how it performs.

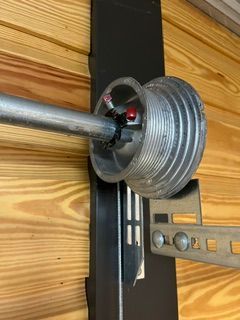

Cable drum: The cable should wind cleanly in the grooves without crossing or rubbing.
Bottom attachment: The cable connects at a fixture that can remain under spring tension.

WHAT PROPER CABLE REPAIR CHECKS

The complete door has to move correctly after the repair.

Cable condition

Fraying, broken strands, wear, routing, and attachment.

Drum tracking

Whether the cable is winding cleanly in the drum grooves.

Door position

Whether the door is level, crooked, binding, or moving unevenly.

Counterbalance

Whether the repaired door moves smoothly and remains properly controlled.

CABLE SERVICE

Does the Cable Look Loose—or the Door Sit Crooked?

Stop using the door. We’ll inspect the cable, drum, door position, and counterbalance before forcing it to move.

Call 704-625-5146

REAL CABLE REPAIR EXAMPLES

What Cable Trouble Can Look Like.

A crooked door, slack cable, or cable off the drum shows where the inspection should begin—not which part should automatically be replaced.

Real service photo of a sectional garage door sitting crooked in the opening — DOOR POSITION **Door Sitting Crooked**
One side sits noticeably lower than the other.

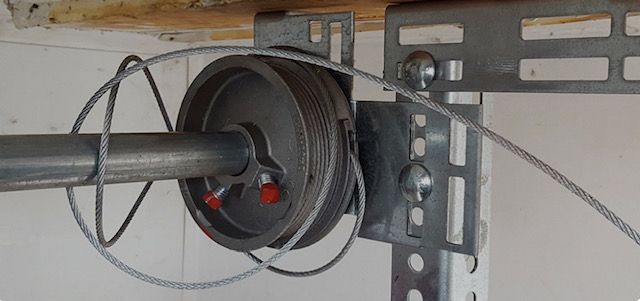

Real service photo showing loose tangled garage door lift cable around the cable drum area — VISIBLE CABLE **Loose or Tangled Cable**
Slack or loops are visible around the drum area.

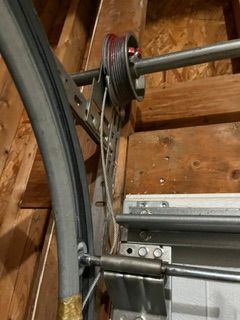

Real service photo of a garage door lift cable that has moved off its cable drum — CABLE DRUM **Cable Off the Drum**
The cable has left its normal grooved path.

Real close-up service photo showing garage door lift cable stacking on a cable drum — CABLE PATH **Cable Stacking on the Drum**
The wraps crowd or overlap instead of tracking cleanly.

WHAT WE INSPECT

The visible problem tells us where to start.

Lift cables, drums, door position, and spring counterbalance work as one connected system. We check them together before recommending a repair.

WHEN REPLACEMENT IS NEEDED

When a Garage Door Cable Needs to Be Replaced.

Coming off the drum does not necessarily mean the cable itself has failed. The decision changes when the cable shows visible wear, deformation, or deterioration.

CABLE OFF THE DRUM

An intact cable is evaluated before replacement is considered.

If the cable remains in serviceable condition, we correct what caused it to lose tension or leave the drum, reset the cable system, and confirm that both cables track properly.

REPLACE THE CABLE WHEN

Fraying or broken strands.

Separated wires or broken strands are visible damage. The cable is replaced rather than returned to service.

Kinking or stretching.

A kinked, stretched, or permanently distorted cable should not be reset and reused.

Flattening or heavy wear.

Worn or flattened areas change the cable’s normal shape and can make replacement necessary.

Significant corrosion.

Rust and deterioration are judged by location and severity; a compromised cable is replaced.

THE SIMPLE RULE

Intact cable? Correct the cause and reset the system. Damaged cable? Replace it.

OFF THE DRUM? Does an off-drum cable automatically need replacement?

Not automatically. A cable can come off the drum because the door became crooked, the cable lost tension, the drum path changed, or another part of the counterbalance system stopped working correctly. The cable still has to be inspected for fraying, kinks, distortion, corrosion, and attachment damage before the correct service is determined.

CABLE FACT Correct the cause, then reset and test the complete lift system.

VISIBLE DAMAGE? When does a garage door cable need replacement?

Fraying, broken strands, kinking, flattening, heavy wear, or significant corrosion mean the lifting cable should be replaced. We also inspect the drum, cable path, bottom attachment, door position, and counterbalance system so the condition that damaged or displaced the cable is not left behind.

CABLE FACT A damaged lifting cable is replaced—not patched or repaired.

SAFE TO USE? Can I keep operating the door or reset the cable myself?

No. A loose, frayed, broken, or off-drum cable is connected to a spring-loaded counterbalance system. Stop operating the door, keep people and vehicles clear of it, and have the cable, drum, spring system, and door position checked before normal use resumes.

CABLE FACT Leave the door closed when possible and do not force it with the opener.
